- Technology example: Functionally integrated, bionically optimized lightweight vehicle structure manufactured flexibly with EDAG, BLM, LZN and Concept Laser
- New potential for lightweight construction and greater flexibility in the manufacture of automobiles
Lichtenfels, Germany, April 11, 2016 –Manufacturers are currently required to integrate the increasing number of drive concepts and energy storage systems into vehicle structures. The vehicle bodies of tomorrow, particularly in view of alternative drive systems in small series with lots of different versions, will not only need to be lighter, but above all will also require a highly flexible design. The consequence is an increasing number of vehicle derivatives, which demand adaptable bodywork concepts that are economical to manufacture. In the foreseeable future, additive manufacturing could offer entirely new possible approaches.

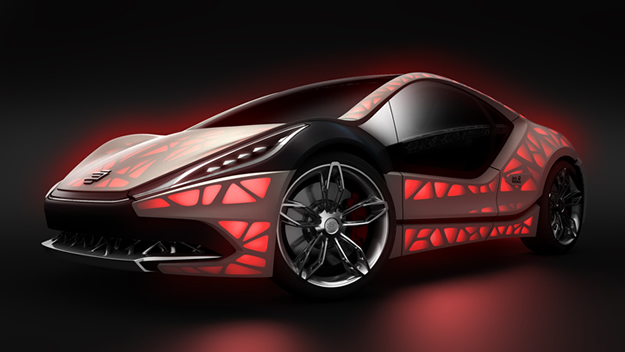

The EDAG concept car “Light Cocoon” is a compact sports car with a bionically designed and additively manufactured vehicle structure, covered with an outer skin made from weatherproof textile material. The EDAG Light Cocoon was unveiled in March 2015 at the Geneva Motor Show and in September 2015 at the International Motor Show (IAA) in Frankfurt. The “EDAG Light Cocoon” is intended to polarize opinions among designers and breaks open existing thought patterns in vehicle design. The bodywork structure embraces bionic patterns and translates them into a lightweight bodywork structure. A concept car that highlights sustainable approaches and at the same time embodies the technological potential of additive manufacturing.
Technology example: NextGen spaceframe combines lightweight construction and flexibility: Functionally integrated, bionically optimized lightweight vehicle structure manufactured flexibly
In a joint project, EDAG Engineering GmbH (Wiesbaden, DE), Laser Zentrum Nord GmbH (Hamburg, DE), Concept Laser GmbH (Lichtenfels, DE) and the BLM Group (Cantù, IT) created the bionically optimized spaceframe produced by hybrid manufacturing to highlight a new way in which a bodywork concept that is adaptable and can be manufactured flexibly can be delivered in order to make the increasing range of different vehicles manageable thanks to the large number of different drives and load stages.
Additively manufactured bodywork nodes and intelligently processed profiles are combined. Thanks to additive manufacturing, the nodes can be configured to be highly flexible and multifunctional so that, for example, different versions of a vehicle can be produced “on demand” without any additional tooling, equipment and start-up costs. Steel profiles are used as connecting elements. They too can easily be adapted on an individual basis to the specified load levels by providing them with different wall thicknesses and geometries.
The NextGen spaceframe in detail
The NextGen spaceframe is a combination of additively manufactured 3D nodes and intelligently processed steel profiles. The nodes can be manufactured on site for the particular version “just in sequence” (JIS), along with the profiles, which are cut to the appropriate shape and length initially using 3D bending and then by employing 2D and 3D laser cutting processes.
The focus is on joining together individual components to create a hybrid structure in order to produce topologically optimized structures that are not yet possible at present. The method used is laser welding, which is characterized by intricate welded seams and low thermal input. The components are welded together with a fillet weld on the lap joint. The geometric basis for this is the complete shoeing of the profiles all the way round, and this is also produced on demand via additive manufacturing through 3D measuring of the profiles. This joint enables circumferential welding to produce a connection over a long length along with excellent prepositioning of the components. The profiles are automatically aligned and fixed in place by the node. A high-brightness laser with robot-guided optics is used.
In addition, the laser techniques used to produce profiles and nodes can largely be automated in assembly. This concept offers great potential when it comes to the manufacturing cost structure and the possibility of saving time. The additively manufactured nodes can be adapted to reflect each load stage, e.g. by incorporating additional stiffening elements to cater for high load requirements. This means that each version is designed for the optimum weight and function. The hybrid design spans the required distances of the structure with the profiles, while the nodes are used to connect the profiles together. Both elements were optimized using CAE/CAD and guarantee the requirements that are demanded of a bodywork structure.
In the present case, as well as playing a coordinating role, EDAG Engineering GmbH was responsible for devising and optimizing the spaceframe concept, Laser Zentrum Nord GmbH did the laser welding, the BLM Group undertook the 3D bending and laser cutting, and Concept Laser GmbH performed the additive manufacturing of the nodes. The project could only be implemented successfully thanks to the interdisciplinary collaboration between the complementary partners and the high level of expertise of the individual technology specialists in their specific disciplines.
Production of the additively manufactured NextGen spaceframe nodes
The LaserCUSING process from Concept Laser generates components in layers directly from 3D CAD data. This method allows the production of components with complex geometrical shapes without the use of any tools. It is possible to produce components, which it would be very difficult or impossible to fabricate by conventional manufacturing. With this type of design, the nodes cannot be manufactured by conventional steel casting. In order to be able to guarantee a fault-free structure, a support structure should be provided on planes with an angle of less than 45° in relation to the build platform.

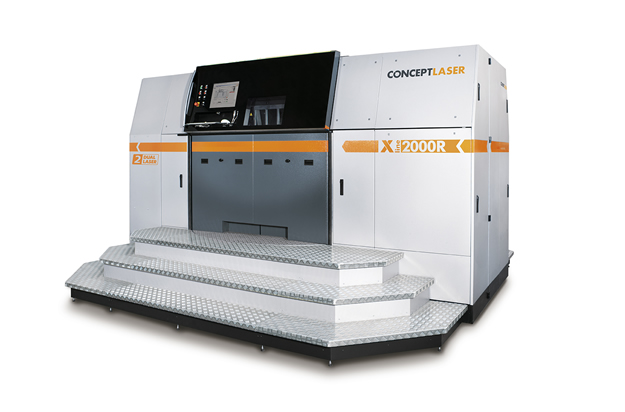

As well as providing simple support, the support itself absorbs in particular internal stresses and prevents the components from warping. Due to the complex geometry of the nodes, clean support preparation is the absolute basis of successful production. After preparing the support, the component is virtually cut into individual slices. Once the data has been transferred to the LaserCUSING machine, the corresponding process parameters are assigned, and the build process is started. The nodes were manufactured on an X line 1000R machine from Concept Laser, which has the appropriate build envelope (630 x 400 x 500 mm3) for such projects and operates with a 1kW laser. Only the new X line 2000R (800 x 400 x 500 mm3), likewise from Concept Laser, has a larger build envelope for powder-bed-based laser melting with metals and it is also equipped with 2 x 1kW lasers.
Verdict: Digital 3D manufacturing strategy with laser technologies
The spaceframe concept combines the advantages of 3D printing, such as flexibility and the potential for lightweight construction, with the efficiency of proven conventional profile designs. The laser plays the key role in both technologies. The topologically optimized nodes enable the maximum lightweight construction that is possible at the present time, and a high degree of functional integration. Both the nodes and the profiles can be adapted to new geometries and load requirements without any additional outlay. This means that they offer the possibility of designing every single part to cater for the level of loading, and not dimensioning the components to reflect the greatest motorization or load stage, as was previously the case.
The basic idea then is to have a node/profile design which can be optimally customized to reflect what the particular model requires. The result is a spaceframe structure with an optimized load path. By employing processes, which do not involve much use of apparatus or tools, it will be possible in future to manufacture all bodywork versions economically and with the greatest possible flexibility.
ABOUT
Concept Laser GmbH:
In 2001, one year after Concept Laser GmbH was founded as a startup by CEO & President Frank Herzog, the company unveiled the world’s first industrial laser melting machine. Today, the pioneer’s LaserCUSING process has provided him with more than 50 granted patents and 100 patent applications. 3D metal components are produced in a digital process chain which could not be produced, or would be very difficult to produce, using traditional machining methods. With more than 550 machines installed, Concept Laser is one of the key drivers of powder-bed-based laser melting with metals, which is also referred to as a “green technology.” Today, the aerospace industry, automotive industry, medical technology and other industries focus strategically on 3D metal printing as the production strategy of the future and an embodiment of “Industry 4.0.” Finally, founder and CEO Frank Herzog was hailed as the “Best CEO in the Additive Manufacturing Industry,” and as a finalist for the German Future Prize 2015 he belongs to the “Circle of Excellence” in Germany.
EDAG Engineering GmbH:
EDAG Engineering GmbH is a globally leading and independent development partner to the automotive industry and develops solutions that are ready to go into production to support the mobility of the future. The range of services that the company offers includes the responsible development of vehicles, derivatives, bodies, modules and the production facilities as well as the modeling, prototyping and the production of molds and body systems. The competence centers for “lightweight construction,” “electric mobility,” “light and vision” and “networking / Car IT” make industry-relevant contributions to innovation that enable new technologies to be implemented rapidly into large-scale automotive production. In 2015, EDAG was predicted to generate sales of 675 million euros and employs around 7,900 employees around the world.
Laser Zentrum Nord GmbH:
As a competence center for laser technologies, Laser Zentrum GmbH (LZN) sees itself as a link between fundamental research and industrial application and it provides companies with real impetus for the future that allows them to enhance their competitiveness in a sustainable way.The research, development, and consulting activities cover the entire process chain from the feasibility analysis right through to the quality-assured component. LZN works with companies from the automotive, shipbuilding, aircraft construction, medical technology, toolmaking and mechanical engineering sectors. The components are developed, optimized and implemented from titanium, steel, stainless steel, aluminum and composite materials based on the principle of “Engineering in Light – Photonic Solutions for Resource Efficient Products”.For example, working with Airbus and Concept Laser as project partners, a new production technique was developed for manufacturing a component from metal using 3D printing processes – a cabin bracket made of titanium for the Airbus 350 XWB. This project entitled “3D printing – a manufacturing revolution is taking off” persuaded the jury thanks to the level of innovation and commercial application and was nominated for the German Future Prize 2015.
BLM Group:
BLM GROUP is well known worldwide as a leader in tube processing automatic systems for 2D and 3D laser cutting, sawing, bending, end-forming and measuring. “We are Tube” and “All in One” are slogans of BLM to emphasize the knowledge and the experience in the entire tubular parts production process. The goal is to make this process simple and cheap for customers in any specific business sector: automotive, internal and external furnishings, civil and industrial heating and conditioning, agricultural machines, industrial vehicles, motorcycles, buildings, mechanics and many others. Ideation, design and production of systems from BLM is completely made in three companies of the BLM Group in Italy: BLM S.p.A., Adige S.p.A. and Adige-Sys S.p.A.. The BLM Group have actually more than 500 employees and is present in many countries worldwide with our subsidiaries and service centers. Innovation, meaning the creation of added value for customer, is a constant goal during development of new products and solutions. That’s why BLM Group constantly invests a relevant part of its turnover in R&D and participates to projects with a high level of innovation.
LaserCUSING is a registered trademark of Concept Laser.
(Top photo)-Courtesy of EDAG Engineering GmbH
Source: Laser Concept
